FDA US Type Fuses

This fuse series is mainly used in North American standard electrical equipment. Due to it’s excellent aR semiconductor characteristics, fast protection, small I²T value, low operating temperature, low power consumption, high breaking capacity, strong arc extinguishing capacity and other advantages, this fuse series is increasingly used in SVG, active filters, EV charging devices, and various power supply, and other fields. At the same time, due to good anti-vibration, flame retardant and other superior environmental tolerance, this fuse series is also suitable for rail transit, motor vehicles and other fields.

Rated voltage: 150Vac/dc

Rated current: 70-1000A

Overview

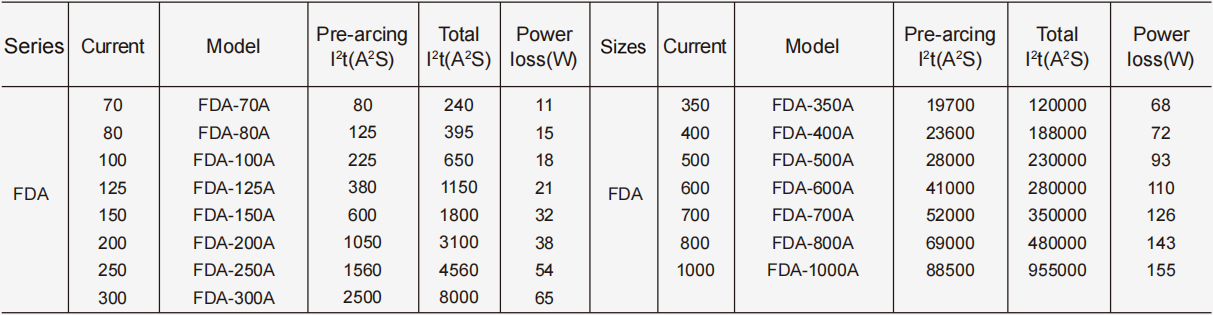

Parameter

1. Precise melt design, filled with high-performance arc extinguishing quartz sand, strong impact and vibration resistance, and high fire resistance

2. Suitable for ambient temperatures ranging from -40 ℃ to 95 ℃, with a relative humidity of ≤ 90%

3. Integrated contact knife tin plating ensures reliable electrical performance, greatly reducing temperature rise and power consumption

4. Possess high resistance and insulation performance

5. Low arc voltage and low power consumption

6. Complies with IEC60269-1 and IEC60269-4 standards

7. High segmentation capability: AC: 100kA DC: 50kA

8. Joule integral I²T small
